Discontinued Product (31.01.2020)

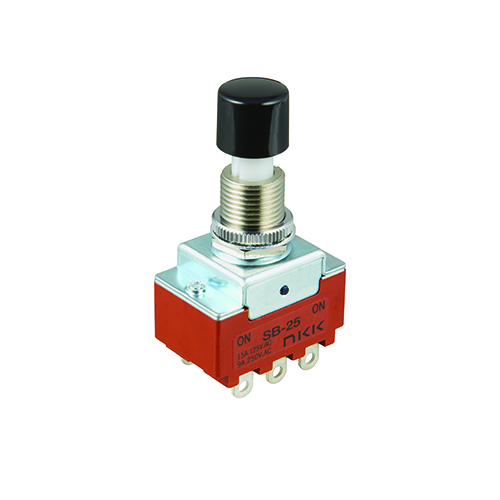

SB25

Pushbutton switches

General Specifications

Part No. SB25
Description 3 Amp Momentary Pushbutton Switches
Name PUSHBUTTON SWITCHES
Series SB
Poles DPDT
Circuits On-On
Current Rating 15A (AC)
Rating 15
Illumination Non-Illuminated
Mounting Type Panel Mount
Rating (AC) 125V
Actuator Type Round Button
Actuator Cap Color Black
Panel Cutout Dimensions 12.5Dia.
Termination Style Solder Lug
Standards & Approvals CSA,UL

Accessories
